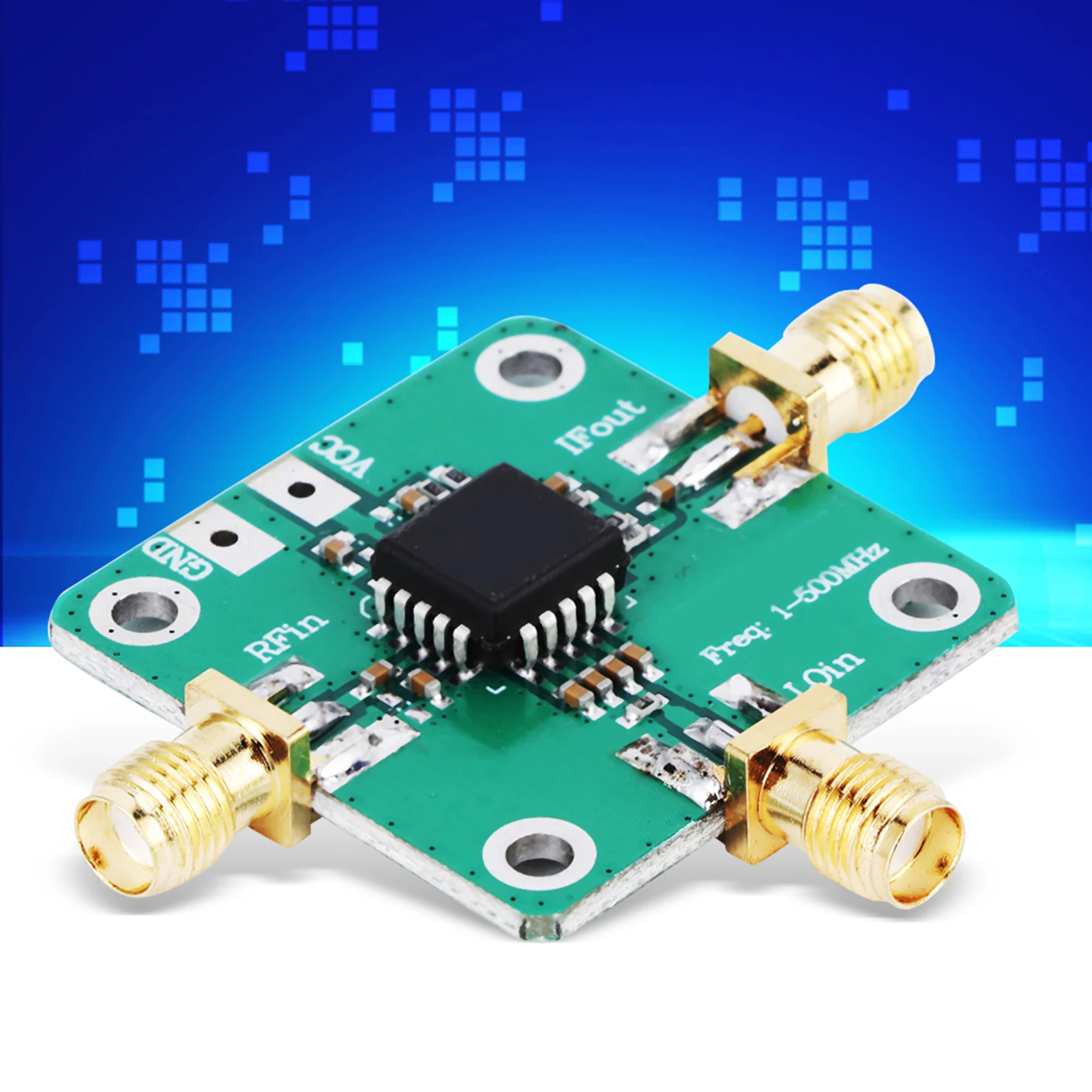

Compact and versatile, the RF Mixer Module AD831 is a high-frequency drive inverter amplifier board designed for general-purpose RF conversion and signal processing. Covering a broad frequency range of 1–500 MHz, this mixer module is suitable for hobbyist projects, lab experiments, and system prototyping where a reliable down/up conversion stage is needed. Its straightforward board design allows easy integration into existing setups or breadboarded circuits.
The module accepts RF and LO inputs and provides mixed output signals for further amplification or filtering. Built around the AD831 topology, it emphasizes consistent conversion behavior across its supported band without requiring complex external components. Ideal for users who need a compact converter at an affordable price.
Highlights:
– Frequency range: 1–500 MHz
– Compact board form factor
– Simple integration for prototyping and experiments
– Affordable converter solution
